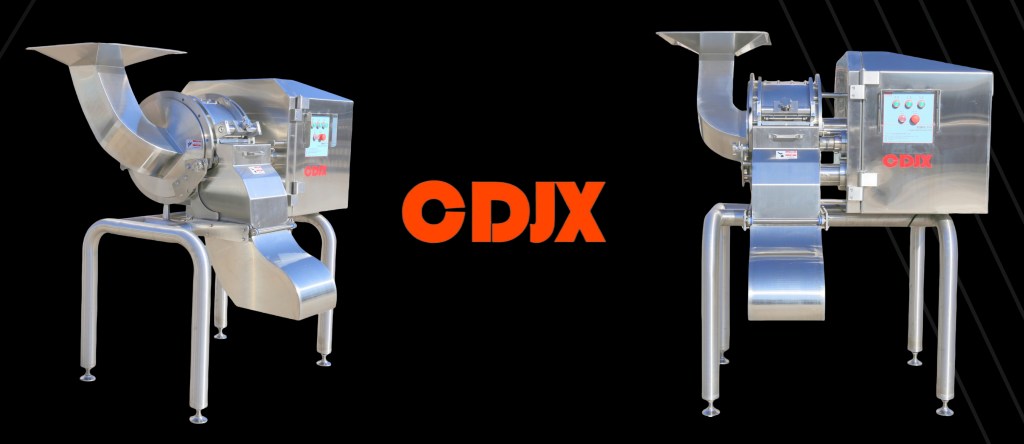

Wavy Grain French Fry Machine CDT500

The CDT500 is a high-capacity cutting machine designed for wavy French fries and other root vegetable cutting applications. By changing the knife set, it can also process vegetables into slices, strips and cubes. With a processing capacity of 1000–5000 kg/h, the CDT500 is suitable for customers requiring large-volume vegetable cutting.

CDT500 Wavy French Fry Machine in Operation

See the CDT500 processing root vegetables into wavy cuts for high-capacity food production.

Wavy French Fries Cutting Results

The CDT500 can cut potatoes, sweet potatoes and taro into wavy strips or wavy slices. By changing the knife set, it can also process root vegetables into slices, strips and cubes.

Technical Data

Voltage &Frequency: 380V/50Hz/3Phase or According To Customer’s Demands

Power: 5.5Kw

Inner Drum Diameter: 500mm

Input Material Size: Diameter Less Than 200mm

Capacity: 1000~5000Kg/H

Cutting Size Range: 3~20mm

External Dimension: 1800x1300x1930mm

Weight: 680Kg

Material Of The Machine: SUS304 Stainless Steel

Material Input Way: Continuously

Lubricating Way: Oil Nozzle

Thickness Control: Manual Adjustment

Key Features

High Processing Capacity: The CDT500 provides a processing capacity of 1000–5000 kg/h for large-volume vegetable cutting.

Multiple Vegetable Cutting Results: Suitable for cutting root vegetables into slices, strips and cubes.

Easy Cleaning: The machine can be flushed directly with a high-pressure water gun.

Safety Protection: Equipped with an inductive automatic shut-off circuit.

High-Capacity Cutting with Multiple Knife Sets

The CDT500 is not limited to wavy French fry cutting. Different knife sets can be installed according to the required finished product, allowing the machine to process root vegetables into different cutting results.

With a processing capacity of 1000–5000 kg/h, the CDT500 is especially suitable for customers who require large-volume vegetable processing with different cutting requirements.

Frequently Asked Questions

What vegetables can the CDT500 process?

The CDT500 is suitable for root vegetables such as potatoes, sweet potatoes and taro, as well as other suitable vegetables according to the cutting requirement.

What cutting results can the CDT500 produce?

The machine can produce wavy strips and wavy slices. By changing the knife set, it can also cut vegetables into slices, strips and cubes.

Need a High-Capacity Vegetable Cutting Solution?

Contact CDJX with your vegetable product, required cutting result, cutting size and production capacity. We can provide cutting tests and recommend the suitable knife set and machine configuration for your processing requirements.
