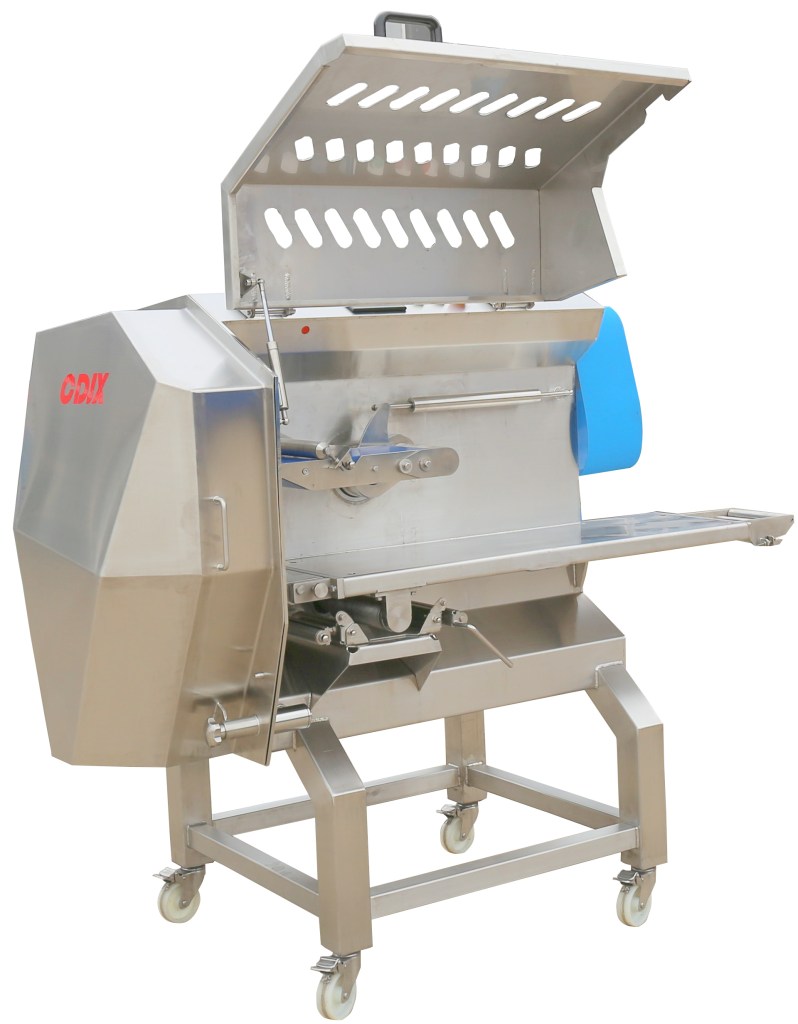

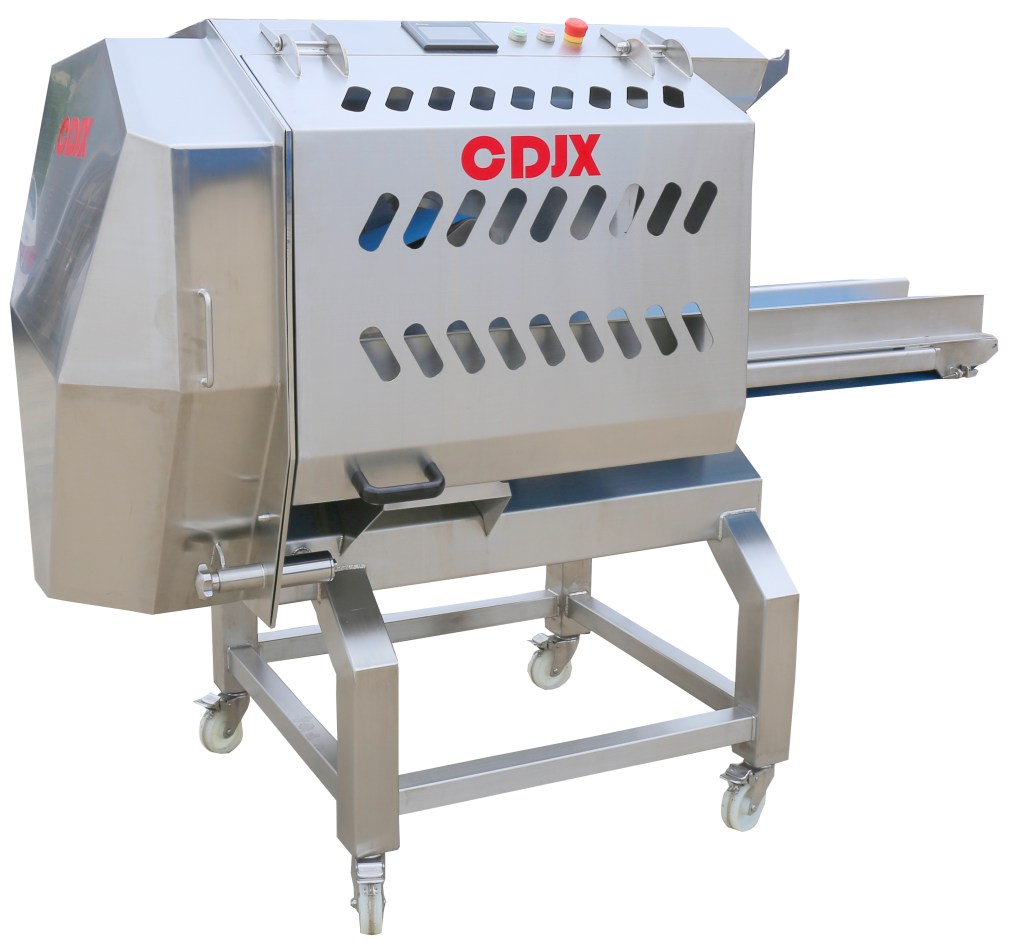

Multi-Functional Cutting Machine CD190

The CD190 Multi-Functional Slicing Machine is designed for customers with multiple food cutting requirements. By changing different cutting knives, the machine can process cheese, vegetables, frozen meat and fruit into different cutting results, including slices, cubes, shreds and shredded cheese. One machine can handle a wide range of food products and cutting applications.

CD190 Multi-Functional Cutting Machine in Operation

See the CD190 processing different food products with interchangeable cutting discs for a variety of cutting applications.

Multiple Food Cutting Results

With different cutting discs, the CD190 can produce a variety of cutting results for cheese, vegetables, frozen meat and fruit, making it suitable for customers who need to process different products with one machine.

Technical Data

Voltage &Frequency: 380V/50Hz/3Phase or According to Customer’s Demands

Power: 5.5kw

External Dimension: 1800*1000*1500mm

Weight: 530kg

Cutting Size: Width190mm, Height140mm

Knife Cutting Speed: 100-644 Times/Minute

Cutting Size: 1-50mm, According to Customer’s Demands

Input Material Height: 910mm

Output Material Height: 500mm

Machine Material: SUS304 Wire Drawing Stainless Steel

Material Input Way: Put the Material Continuously

Key Features

Interchangeable Cutting Knife: Different cutting Knife can be changed according to the food product and required cutting result.

Multiple Cutting Functions: Suitable for slicing, dicing, shredding and other food cutting applications.

Wide Range of Food Applications: Suitable for processing cheese, vegetables, frozen meat and fruit.

Continuous Feeding: Designed for continuous material feeding during production.

Adjustable Cutting Requirements: Different cutting knife and machine settings can be selected according to different products and processing requirements.

Easy Cleaning: The conveyor belt can be disassembled by hand for convenient cleaning.

Safety Protection: Equipped with safety protection for the material input and output areas.

One Machine for Multiple Cutting Applications

For food processors handling different products and cutting requirements, the CD190 provides a flexible solution with interchangeable cutting knives. Instead of using separate machines for different applications, customers can change the cutting disc according to the raw material and required cutting result.

This makes the CD190 especially suitable for food factories, central kitchens and processors that regularly handle different products or require multiple cutting styles.

Frequently Asked Questions

What foods can the CD190 process?

The CD190 can process cheese, vegetables, frozen meat and fruit with different cutting knives.

What cutting results can the CD190 produce?

Depending on the cutting knife used, the CD190 can produce slices, cubes, shreds and other cutting results for different food products.

Can the CD190 shred cheese?

Yes. The CD190 can be equipped with a suitable cutting knife for cheese shredding.

Can the CD190 dice cheese?

Yes. The cheese blocks need to be sliced first, and then diced with the appropriate knife set.

Is the CD190 suitable for customers processing different food products?

Yes. The CD190 is especially suitable for customers who need to process different food products or require multiple cutting styles with one machine.

Can I send my products to CDJX for a cutting test?

Yes. Contact CDJX with your raw material and required cutting result. We can help select the suitable cutting disc and machine configuration for your application.

Have a specific cutting requirement? Explore more CDJX food cutting machines for different products, capacities and cutting applications.

Need a Multi-Functional Food Cutting Solution?

Contact CDJX with your food product and required cutting result. We can recommend the suitable cutting knife and machine configuration, provide cutting tests, pricing and more information about the CD190 Multi-Functional Slicing Machine.
