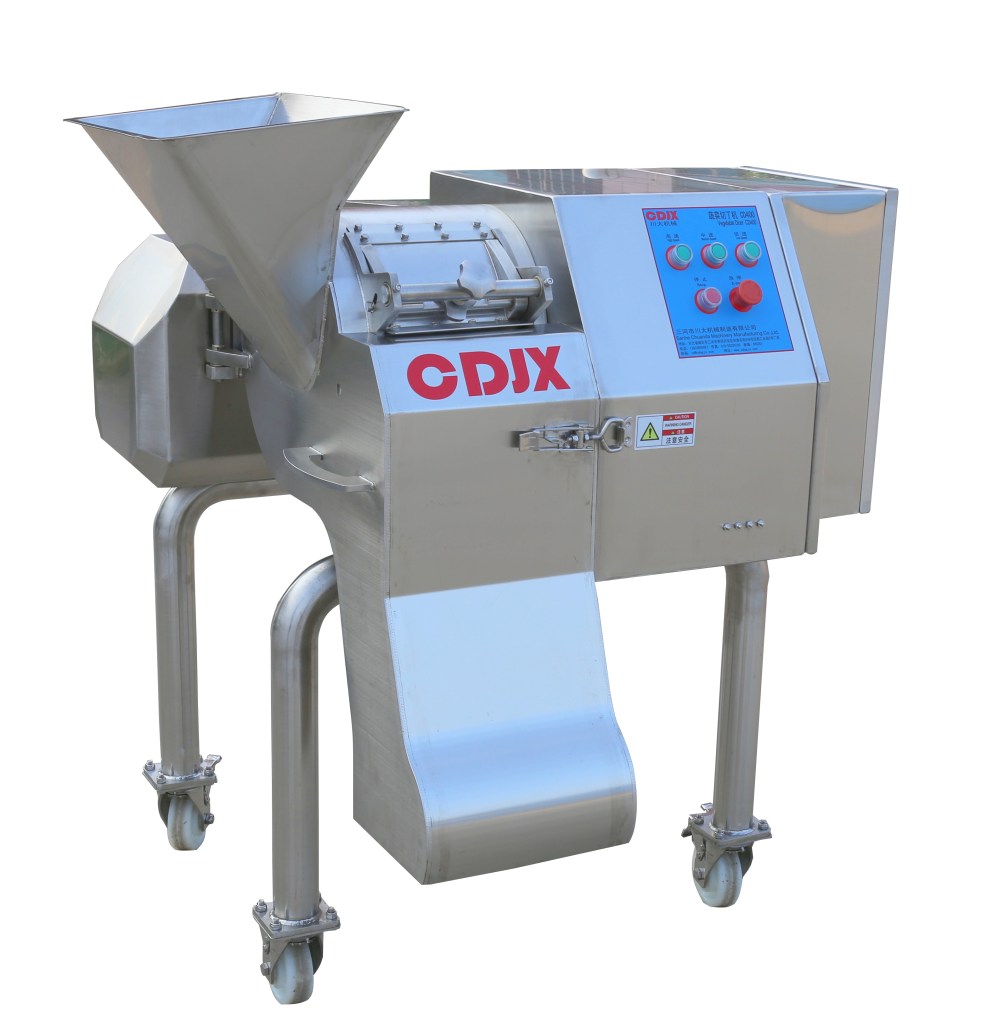

Multi-Function Cutting Machine CD400

The CD400 Multi-Function Cutting Machine is designed for cutting cheese, vegetables, frozen meat and frozen fruit into slices, strips and cubes. It is suitable for high-capacity food processing applications.

CD400 Multi-Function Cutting Machine in Operation

See the CD400 Multi-Function Cutting Machine in operation for food cutting applications.

Cutting Results

The CD400 can process cheese, vegetables, frozen meat and frozen fruit into slices, strips and cubes for different food processing requirements.

Technical Data

Voltage &Frequency: 380V/50Hz/3Phase or According to Customer’s Demands

Power: 7.5kW

Inner Drum Diameter: 400mm

Capacity: 2000~4000kg/h

Input Material Size: Diameter less than 200mm

Cutting Size Range: 3~12mm Slices, Strips and Cubes

External Dimension: 1440*1250*1600mm

Weight: 600kg

Material of the Machine: SUS304 Stainless Steel

Cutting Temperature for the Frozen Meat: -5°C~0°C

Meat Thaw Environment Temperature: -6°C ~ – 3°C

Material Input Way: Continuously

Lubricating Way: Oil Nozzle

Thickness Control: Manual Adjustment

Control System: Waterproof Buton, Frequency Transformer

Key Features

Sharp Knife Blades: Thin and sharp knife blades provide smooth cutting surfaces.

Continuous Feeding: Designed for continuous material feeding during production.

Easy Cleaning: The machine can be flushed directly with a high-pressure water gun.

Safety System: Equipped with an inductive automatic shut-off circuit.

Multiple Cutting Applications: Suitable for cheese, vegetables, frozen meat and frozen fruit, producing slices, strips and cubes.

Frequently Asked Questions

What foods can the CD400 cut?

The CD400 can process cheese, vegetables, frozen meat and frozen fruit.

What cutting results can the CD400 produce?

The CD400 can produce slices, strips and cubes for different food processing applications.

What cutting sizes are available?

The cutting size range is 3–12 mm for slices, strips and cubes.

What is the processing capacity of the CD400?

The capacity is approximately 2000–4000 kg/h, depending on the product and cutting size.

Can I send my product to CDJX for a cutting test?

Yes. Contact CDJX to discuss your product, required cutting result and cutting test before machine selection.

Looking for a more compact option? See the CD330 Multi-Function Cutting Machine for different food processing requirements.
