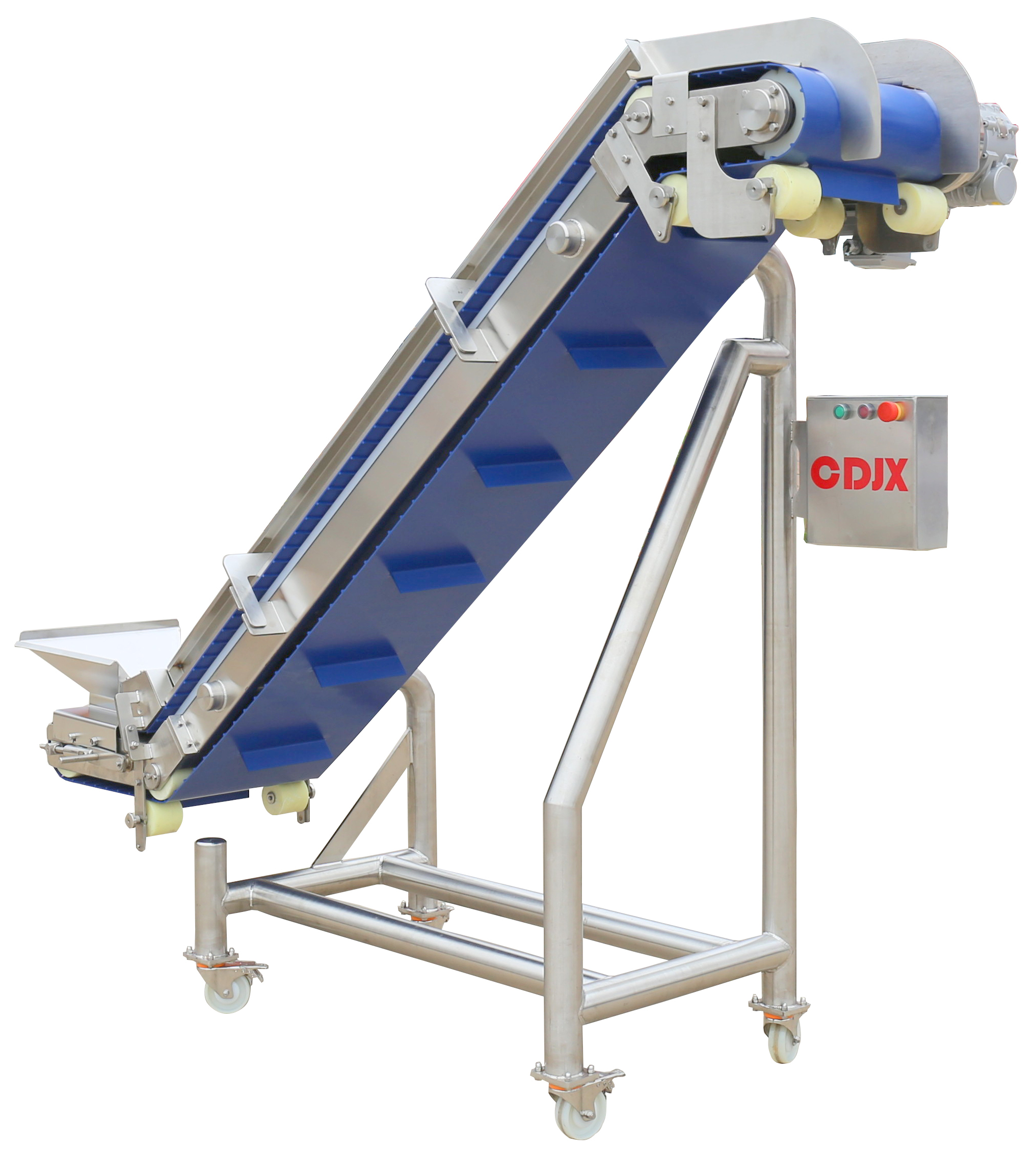

Conveyor CDZ-44

The CDZ-44 Conveyor is designed to connect food processing equipment before and after different processing stages.

Its conveyor belt is equipped with dividers for transporting spherical and other food products, while the zigzag structure helps reduce material leakage during receiving and feeding.

Conveyor CDZ-44 in Operation

See how the CDZ-44 transfers food materials between different food processing equipment.

Connecting Food Processing Equipment

The CDZ-44 is mainly used to connect food processing equipment at different processing stages, helping transfer food materials from one machine to the next.

Technical Data

External Dimension: 2650x717x1956mm

Power: 1.1kW

Width of the Input Material Belt: 284m

Speed: 270mm/s

Weight: 320kg

Key Features

Equipment Connection: Mainly used to connect food processing equipment at different processing stages.

Single-Motor Drive: Driven by a single motor, with an optional frequency converter for speed control.

Easy Belt Removal: The single cantilever frame structure makes the conveyor belt convenient to remove, replace and clean.

Conveyor Belt Dividers: Dividers on the conveyor belt allow the machine to transport spherical and other food products.

Zigzag Structure: The overall zigzag design helps reduce material leakage during receiving and feeding.

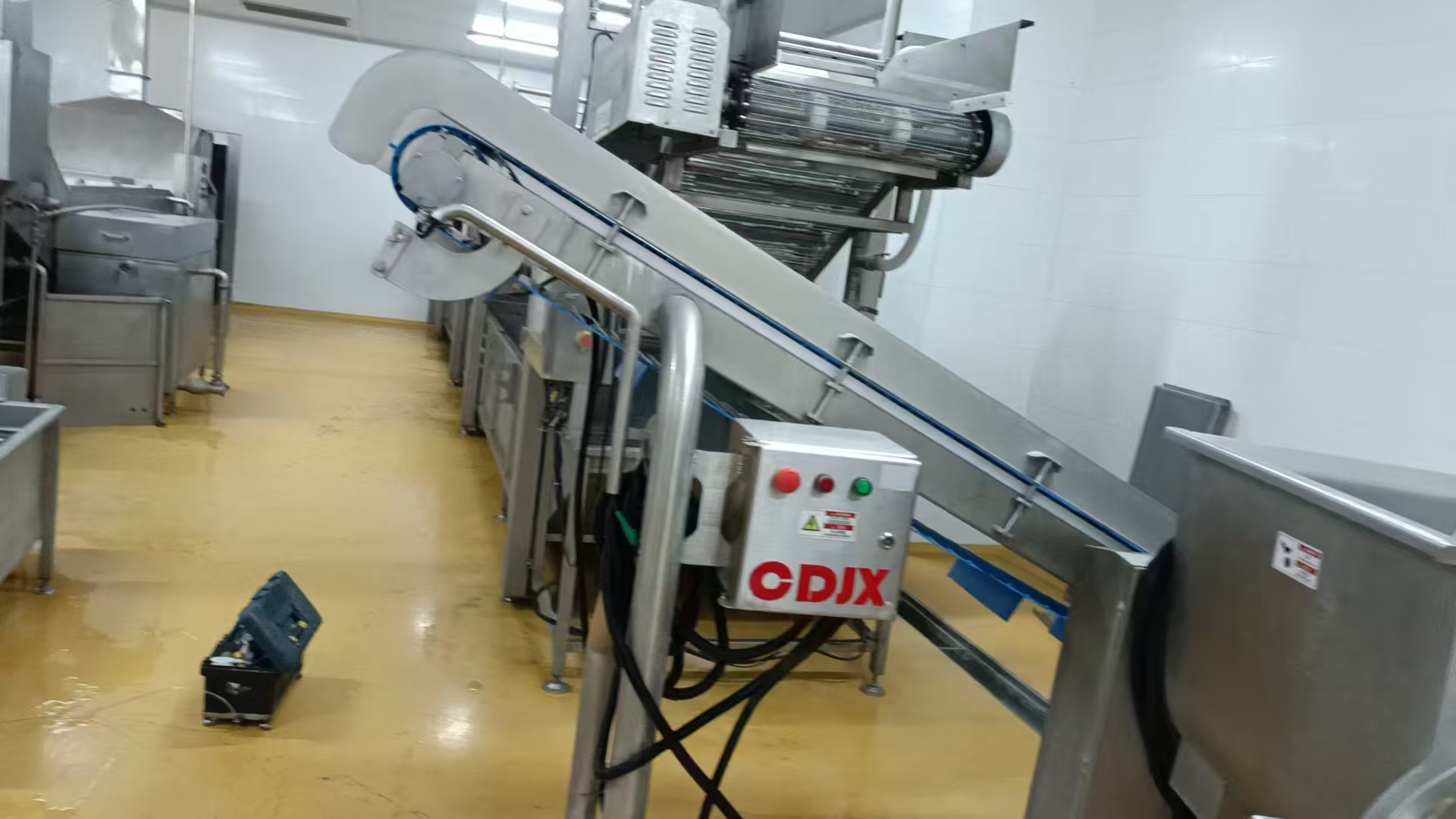

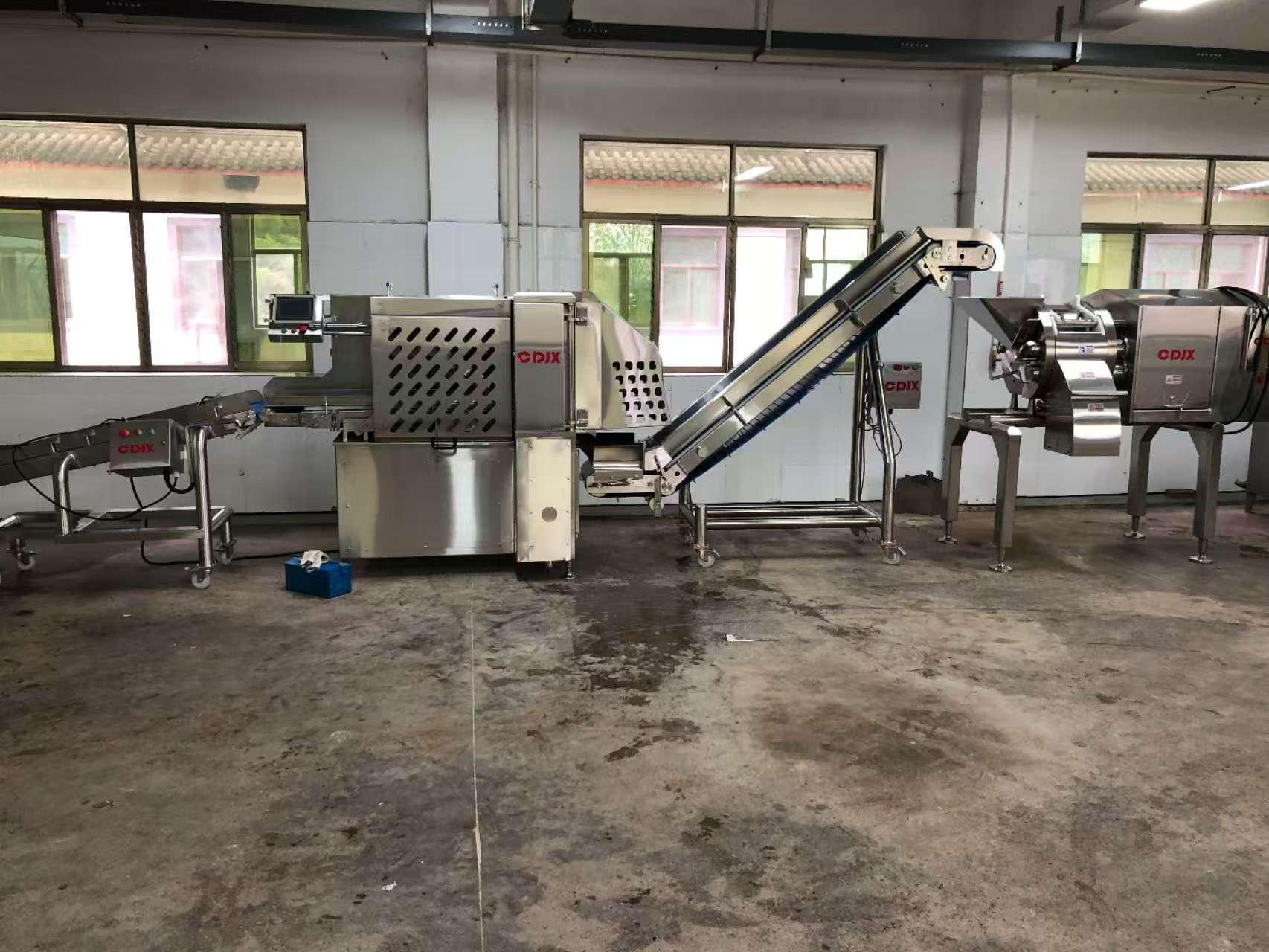

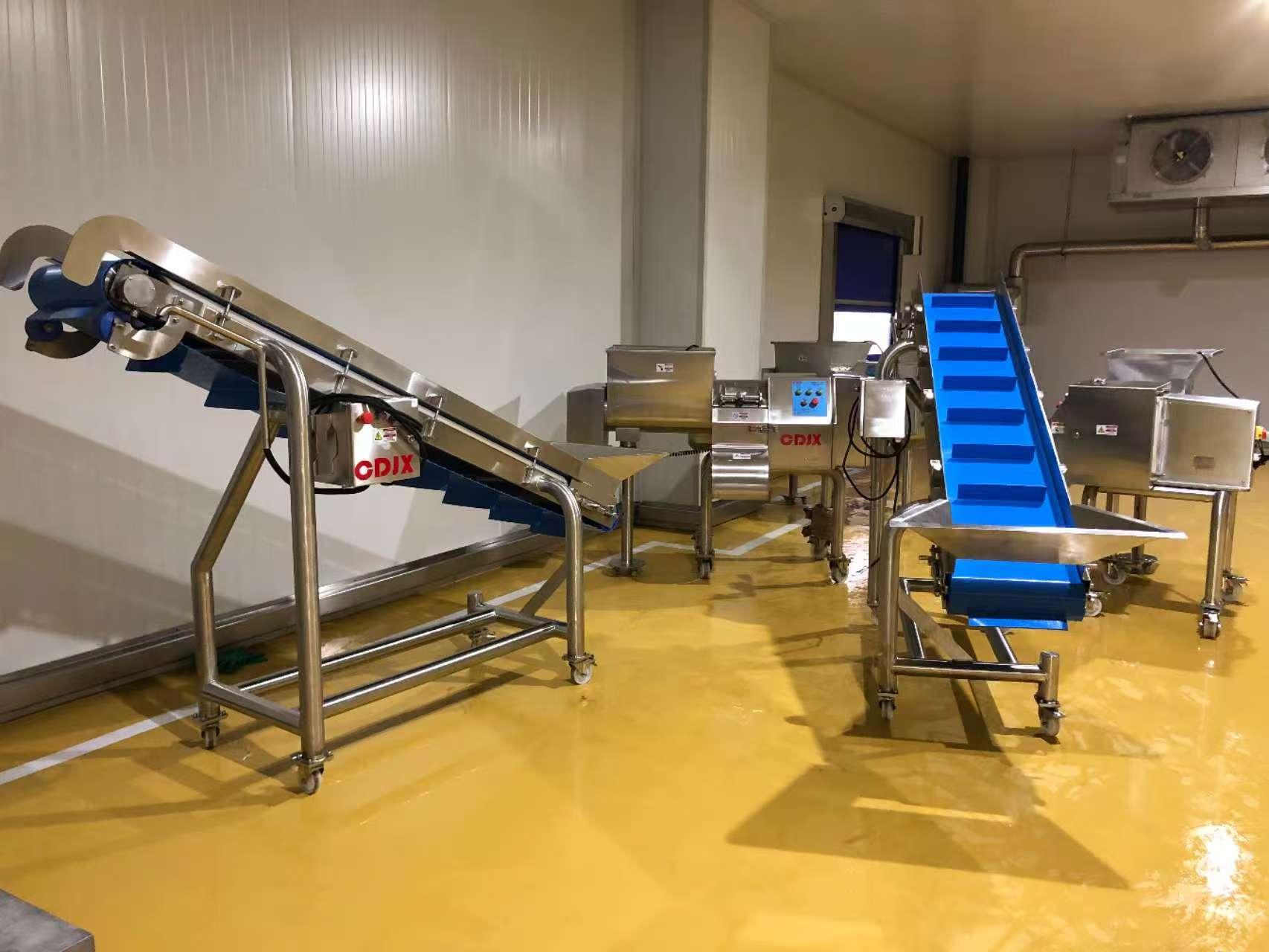

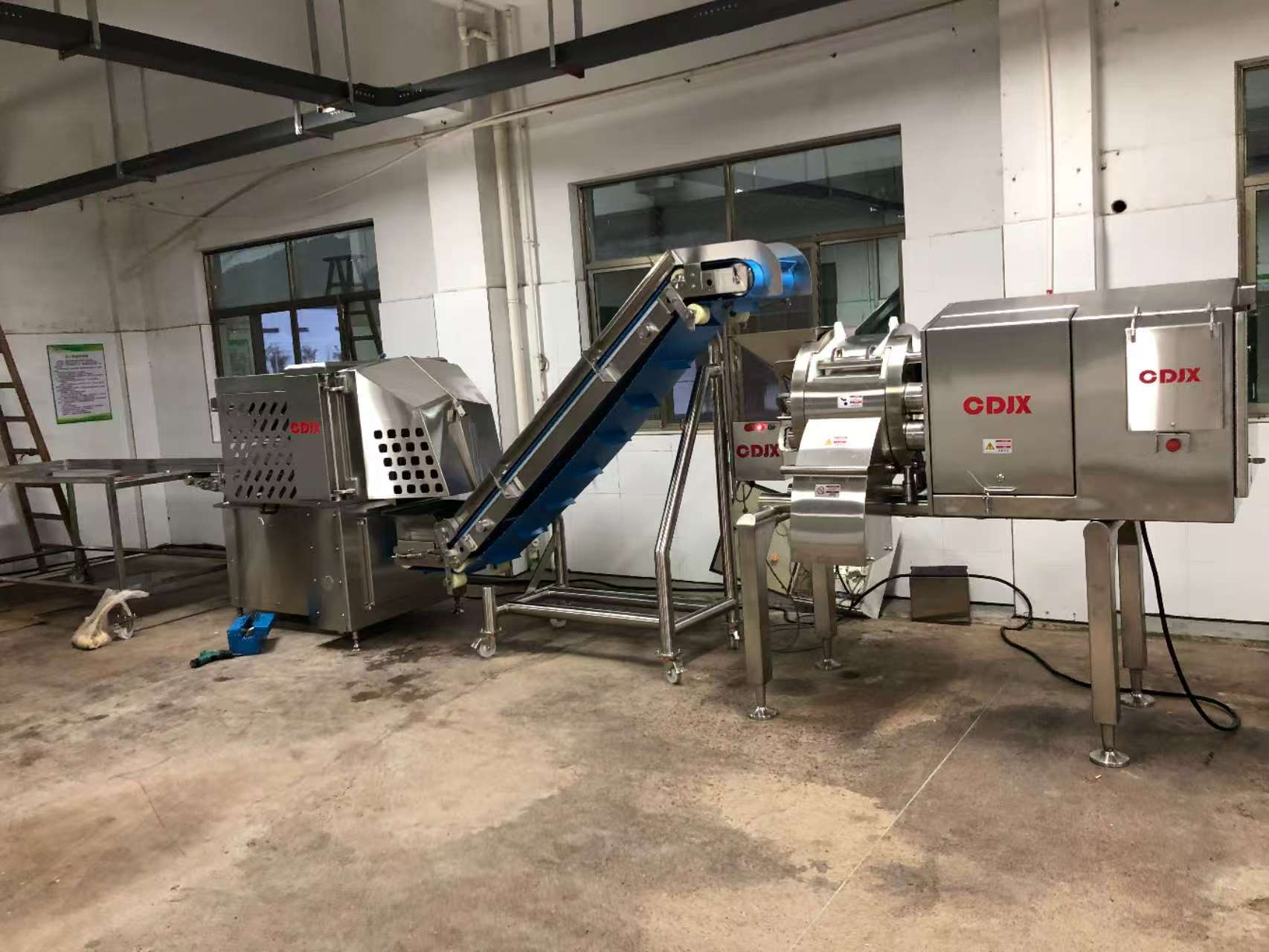

Connecting Different Processing Stages

The CDZ-44 can be positioned between different food processing machines to transfer materials from one processing stage to the next.

Frequently Asked Questions

Can the conveyor speed be adjusted?

A frequency converter can be added to the single-motor drive system to provide speed control.

Is the conveyor belt easy to remove?

Yes. The single cantilever frame structure is designed to make the conveyor belt convenient to remove, replace and clean.

Need a Conveyor for Your Food Processing Line?

Contact CDJX with your food product, processing equipment and production requirements. We can help determine whether the CDZ-44 is suitable for connecting your food processing equipment.
