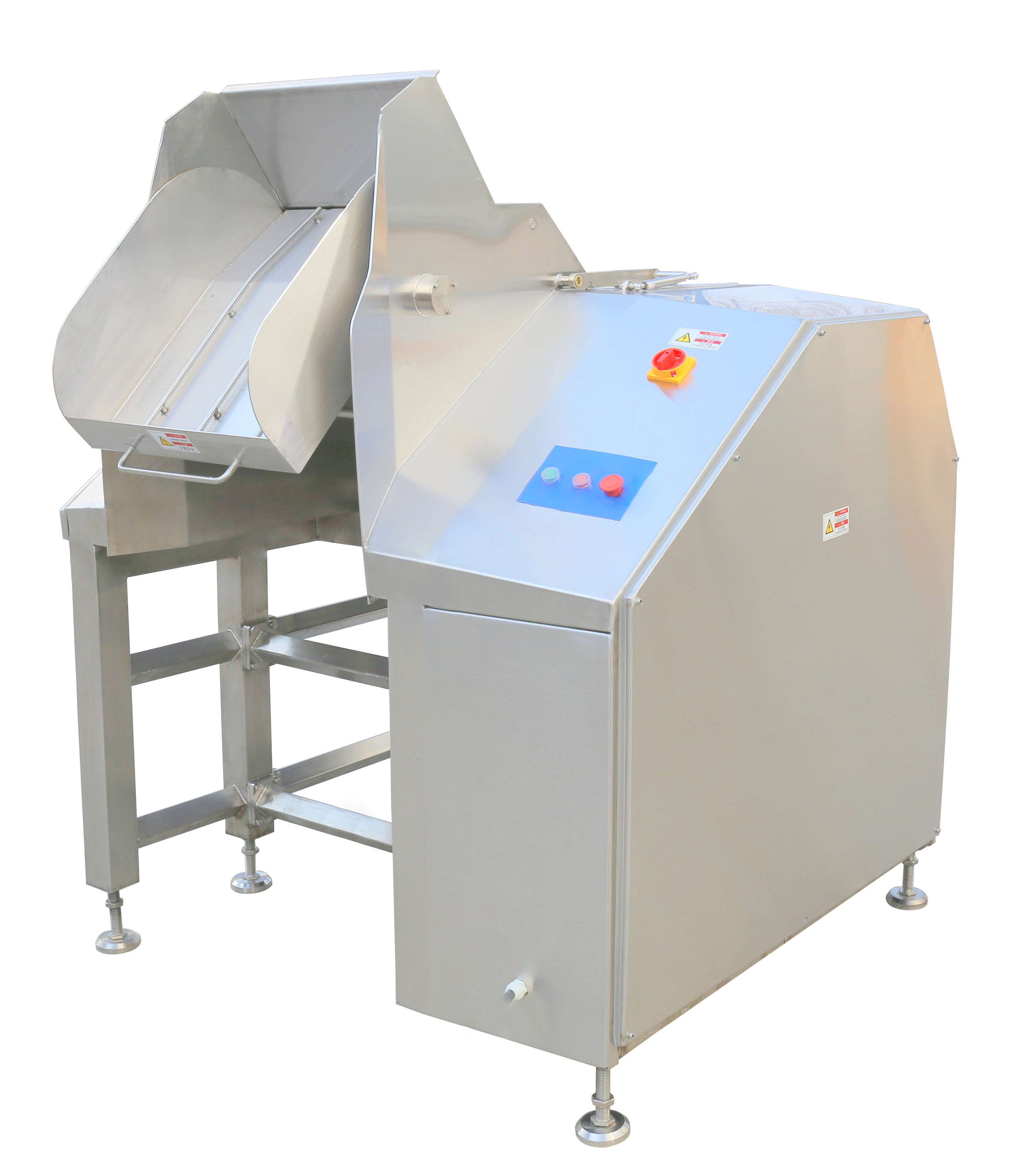

Frozen Meat Flaker CDQ200

The CDQ200 Frozen Meat Flaker is designed for slicing frozen meat at temperatures from -18°C to 0°C.

With a processing capacity of 1000–2000 kg/h and an input size of up to 600×500×190 mm, it is suitable for frozen meat processing applications requiring efficient slicing of frozen meat blocks.

Frozen Meat Flaker CDQ200 in Operation

See the CDQ200 processing frozen meat blocks into slices for further meat processing.

Frozen Meat Slicing Results

The CDQ200 is designed for slicing frozen meat blocks at temperatures from -18°C to 0°C.

Technical Data

Voltage &Frequency: 380V/50Hz/3Phase or According to Customer ‘s Demands

Power: 11kW

Capacity: 1000 ~ 2000Kg/h

Input Material Size: 600*500*190mm

External Dimension: 1500*1235*1690mm

Weight: 1000kg

Material of the Machine: SUS304 Stainless Steel

Cutting Temperature for the Frozen Meat: -18°C~0°C

Material Input Way: Intermittently

Lubricating Way: Oil Nozzle

Control System: Waterproof Button

Key Features

Safe Loading Hopper: The space between the loading hopper and cutting hopper remains closed during loading and cutting for safer operation.

Inclined Machine Structure: The machine structure is designed with angles of inclination to reduce water remaining on the machine after washing.

Three-Way Skip Car Access: The skip car can be positioned from the front, right or back of the machine.

Easy Cleaning: The machine can be flushed directly with a high-pressure water gun.

Safety Protection: Equipped with an inductive automatic shut-off circuit.

Frozen Meat Block Slicing

The CDQ200 is designed specifically for frozen meat slicing. It can process frozen meat at temperatures from -18°C to 0°C, with an input material size of up to 600×500×190 mm and a processing capacity of 1000–2000 kg/h.

Frequently Asked Questions

What is the CDQ200 used for?

The CDQ200 is designed for slicing frozen meat blocks for further meat processing.

What frozen meat temperature can the CDQ200 process?

The specified cutting temperature range for frozen meat is -18°C to 0°C.

What size of frozen meat block can be loaded?

The maximum specified input material size is 600×500×190 mm.

Need a Frozen Meat Flaking Solution?

Contact CDJX with your frozen meat block size, processing temperature and required production capacity. We can help determine whether the CDQ200 is suitable for your frozen meat processing requirements.
