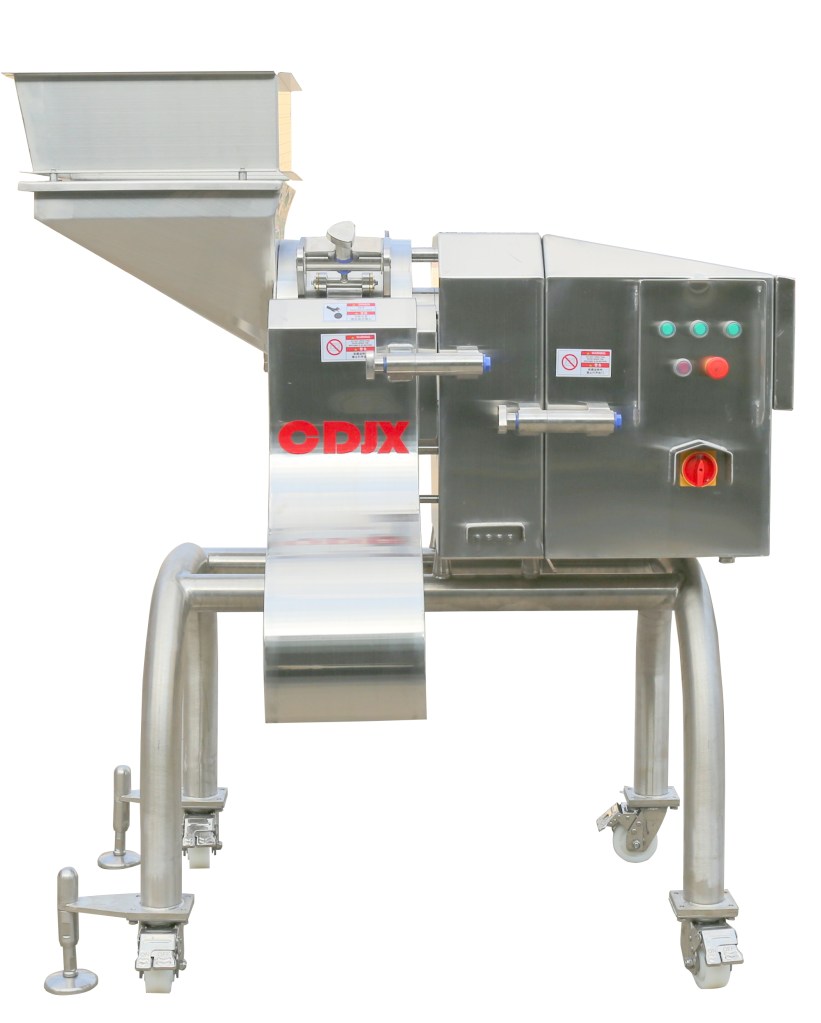

Multi-Function Cutting Machine CD330

The CD330 Multi-Function Cutting Machine is designed for cutting cheese, vegetables, frozen fruit and frozen meat into slices, strips and cubes. With adjustable cutting speed, it is suitable for a wide range of food processing applications.

CD330 Multi-Function Cutting Machine in Operation

See the CD330 Multi-Function Cutting Machine in operation for continuous food cutting applications.

Cutting Results

The CD330 can process cheese, vegetables, frozen fruit and frozen meat into slices, strips and cubes for different food processing requirements.

Technical Data

Voltage&Frequency: 380V/50Hz/3Phase or According to Customer’s Demands

Power: 4kW

Inner Drum Diameter:330mm

Capacity: 1000~3000kg/h

Input Material Size: Diameter less than 120mm

Cutting Size Range: 3~20mm Slices, Strips and Cubes

External Dimension: 1260*900*1700mm

Weight: 500kg

Cutting Temperature for the Frozen Meat: -5°C~0°C

Meat Thaw Environment Temperature: -6°C ~ -3°C

Material Input Way: Continuously

Lubricating Way: Oil Nozzle

Thickness Control: Manual Adjustment

Control System: Waterproof Button, Frequency Transformer

Key Features

Motor-Driven Cutting: The cutting system is driven by a motor for continuous operation.

Three Speed Settings: Three cutting speed settings are available for different processing requirements.

Adjustable Speed: Cutting speed can be adjusted according to different products and applications.

Multiple Cutting Applications: Suitable for processing cheese, vegetables, frozen fruit and frozen meat.

Different Cutting Results: Suitable for producing slices, strips and cubes.

Frequently Asked Questions

What foods can the CD330 cut?

The CD330 can process cheese, vegetables, frozen fruit and frozen meat.

What cutting results can the CD330 produce?

The CD330 can produce slices, strips and cubes for different food processing applications.

What cutting sizes are available?

The cutting size range is 3–20 mm. Please contact CDJX for suitable cutting specifications for your product.

Can I send my product to CDJX for a cutting test?

Yes. Contact CDJX to discuss your product, required cutting result and cutting test before machine selection.

Need higher processing capacity? See the CD400 Multi-Function Cutting Machine for a larger feeding size and higher production capacity.

Need a Food Cutting Solution?

Contact CDJX for machine selection, cutting tests, pricing and more information about the CD330 Multi-Function Cutting Machine.

Contact Email: cd@cdqgjx.com
