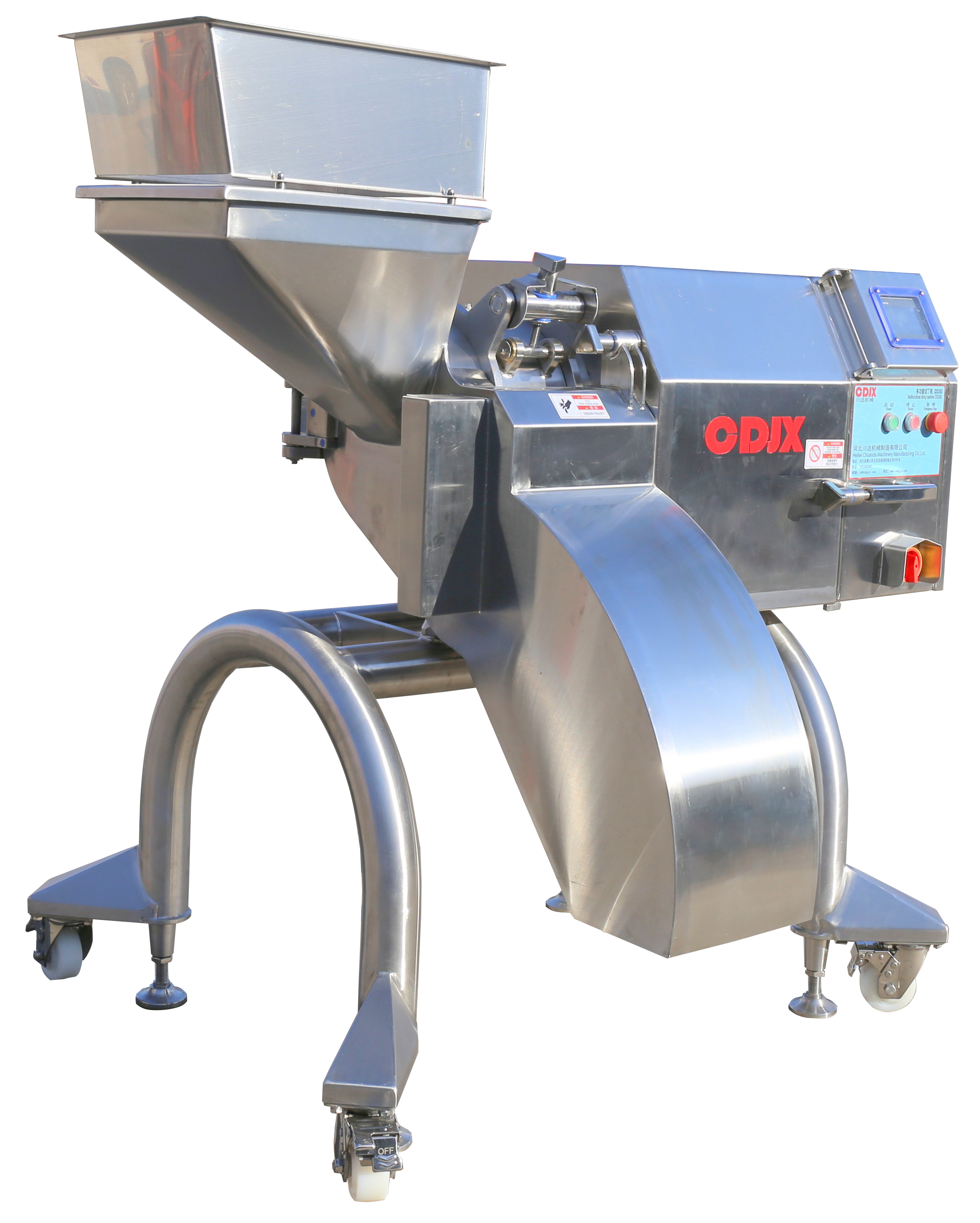

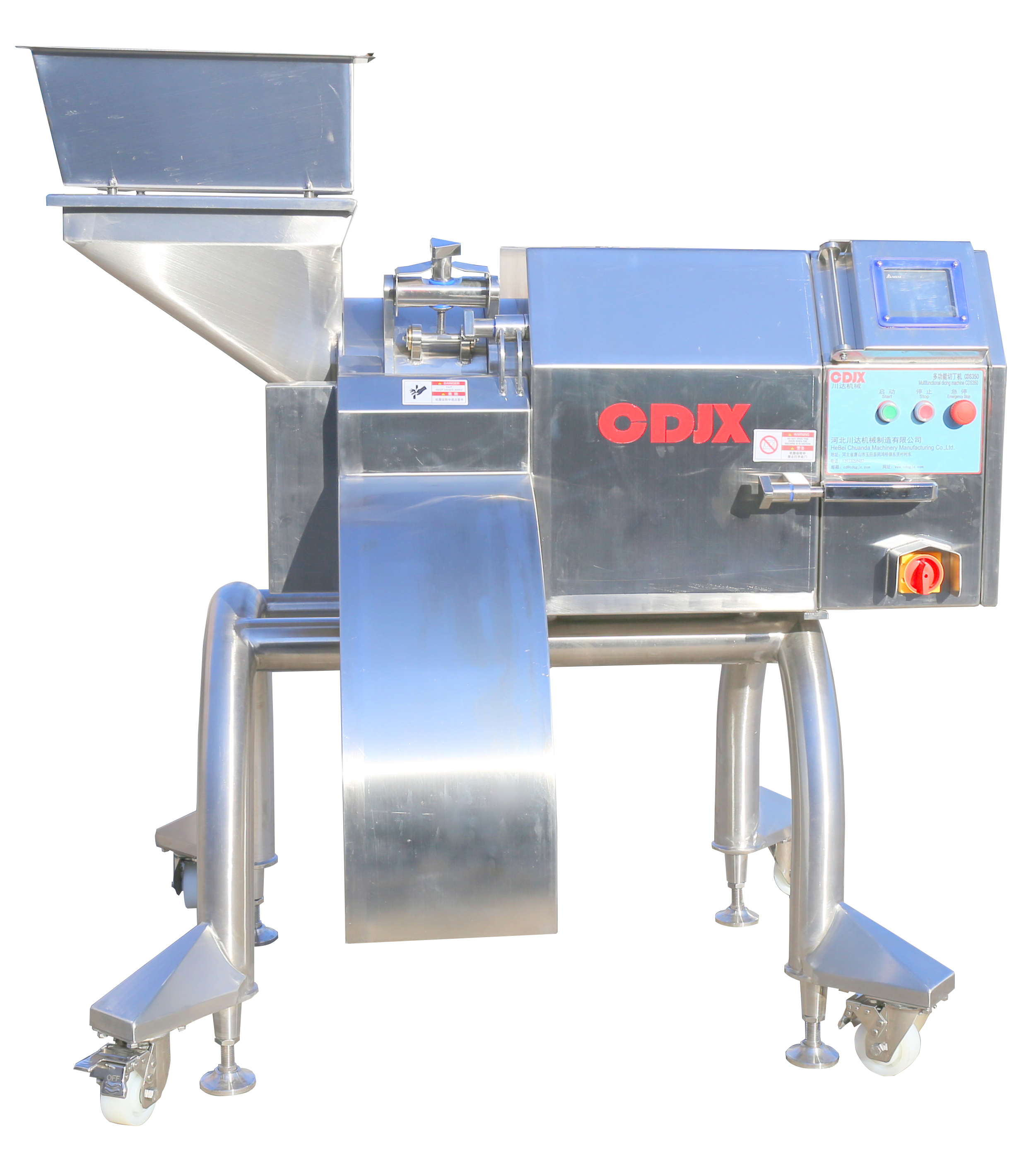

Multi-Function Cutting Machine CDS350

The CDS350 Multi-Function Cutting Machine is designed for customers who need to process different food products with one machine. Its double-motor cutting system allows the cutting speed to be adjusted for different materials, making it suitable for cheese, vegetables, frozen fruit and small-volume frozen meat processing.

CDS350 Multi-Function Cutting Machine in Operation

See the CDS350 processing different food materials into slices, strips and cubes for versatile food cutting applications.

Multiple Food Cutting Results

The CDS350 can process cheese, vegetables, frozen fruit and frozen meat into slices, strips and cubes, with cutting sizes from 3 to 20 mm.

Technical Data

Voltage&Frequency: 380V/50Hz/3Phase or According to Customer’s Demands

Control System: Waterproof Button, Frequency Transformer

Power: 6.2 kW

Inner Drum Diameter:330mm

Capacity: 1000~3000kg/h

Input Material Size: Diameter less than 120mm

External Dimension: 1580x1320x1600mm

Weight: 650 kg

Cutting Size Range: 3~20mm Slices, Strips and Cubes

Material of the Machine: SUS304 Stainless Steel

Cutting Temperature for the Frozen Meat: -5°C~0°C

Meat Thaw Environment Temperature: -6°C ~ -3°C

Material Input Way: Continuously

Lubricating Way: Oil Nozzle

Thickness Control: Manual Adjustment

Key Features

Double-Motor Cutting System: The CDS350 uses double motors for cutting, allowing different cutting speeds to be adjusted according to different food materials.

Tool-Free Cutting Set Removal: The round knife set and planer knife set can be removed by hand without using any tools.

Multiple Food Applications: Suitable for cutting cheese, vegetables, frozen fruit and frozen meat into slices, strips and cubes.

One Machine for Multiple Food Cutting Applications

The CDS350 is a versatile choice for customers who process different types of food with one machine. It is suitable for regular cheese, vegetable and frozen fruit processing, while also providing the capability to process smaller volumes of frozen meat.

The double-motor cutting system allows the cutting speed to be adjusted for different materials, making the CDS350 especially suitable for customers with varied cutting requirements.

Frequently Asked Questions

What food products can the CDS350 process?

The CDS350 is suitable for cheese, vegetables, frozen fruit and frozen meat, producing slices, strips and cubes.

Why does the CDS350 use double motors?

The double-motor cutting system more powerful allows different cutting speeds to be adjusted according to different food materials.

What cutting sizes are available?

The cutting size range is 3–20 mm for different food processing requirements.

Need a larger multi-function cutting solution? See the CDS400 Multi-Function Cutting Machine for larger raw materials and higher-capacity food processing.

Need a Multi-Function Food Cutting Solution?

Contact CDJX with your food materials, required cutting sizes and production requirements. We can provide cutting tests and help determine whether the CDS350 is suitable for your combination of cheese, vegetables, frozen fruit and frozen meat processing.
