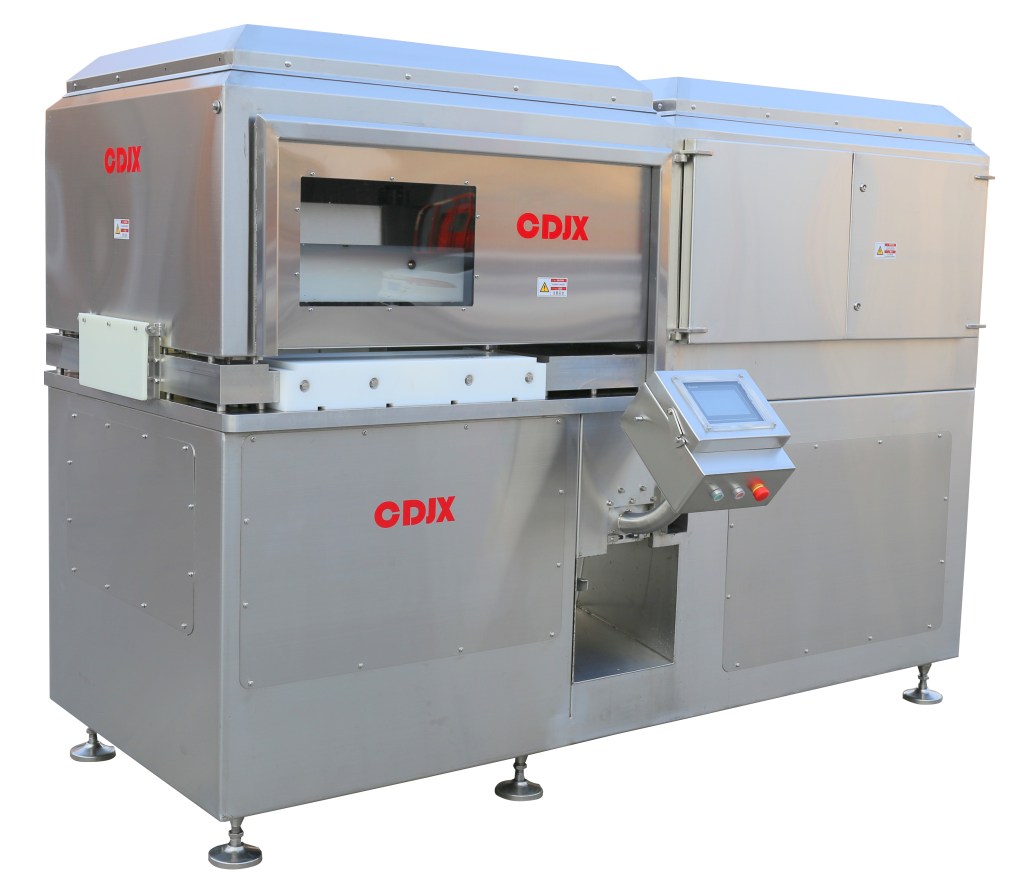

Shaping Machine CDZX400

The CDZX400 Shaping Machine is designed for shaping pork, beef and mutton into the required size before further processing.

Different shaping molds can be customized according to the raw material and required shaping size. The machine is suitable for meat processing applications requiring consistent meat block sizes for subsequent cutting.

Shaping Machine CDZX400 in Operation

See how the CDZX400 shapes meat into the required size for further processing.

Meat Shaping Results

Technical Data

Voltage: 380v 50HZ

Power: 15KW

Capacity: 3-5 Times/Minute

Weight: 3900Kg

External Dimension: 2780X1600X2000mm

Plastic Cavity Size: 700X400X110mm (Shaping Size in this Range Can be Customized Mold)

Material of the Machine: SUS304 Stainless Steel

Suitable Shaping Temperature: -3°C

Lubricating Way: Oil nozzle

Control System: PLC, Waterproof Buton, Servo Driver

Key Features

Replaceable Shaping Molds: The shaping mold is convenient to replace, and different molds can be customized for different raw materials.

Water-Cooled Hydraulic System: The hydraulic station uses a water-cooled circulation system to help reduce the operating temperature of the hydraulic system.

Adjustable Shaping Position: Two directions are fixed and four directions can be moved, allowing the shaping position to be set according to processing requirements.

Easy Cleaning: The machine can be flushed directly with a high-pressure water gun.

Meat Shaping Applications: Pork, beef and mutton can be shaped within -6°C.

CDZX400 + CDGS300 for Meat Shaping and High-Speed Slicing

For meat processing applications requiring consistent shaping before slicing, the CDZX400 can be used together with the CDGS300 High Speed Slicer.

The CDZX400 shapes the meat into the required size before it is processed by the CDGS300 for high-speed slicing. This combination is suitable for customers who require both meat shaping and high-speed slicing in their production process.

Frequently Asked Questions

Can the shaping mold be customized?

Yes. Different shaping molds can be customized according to the raw material and required shaping size.

Can the CDZX400 be used together with a meat slicer?

Yes. The CDZX400 can be used together with the CDGS300 High Speed Slicer. The meat is shaped first and then processed by the CDGS300 for high-speed slicing.

Need a Meat Shaping Solution?

Contact CDJX with your raw material size, required shaping size and further processing requirements. We can recommend and customize the suitable shaping mold for your application.
