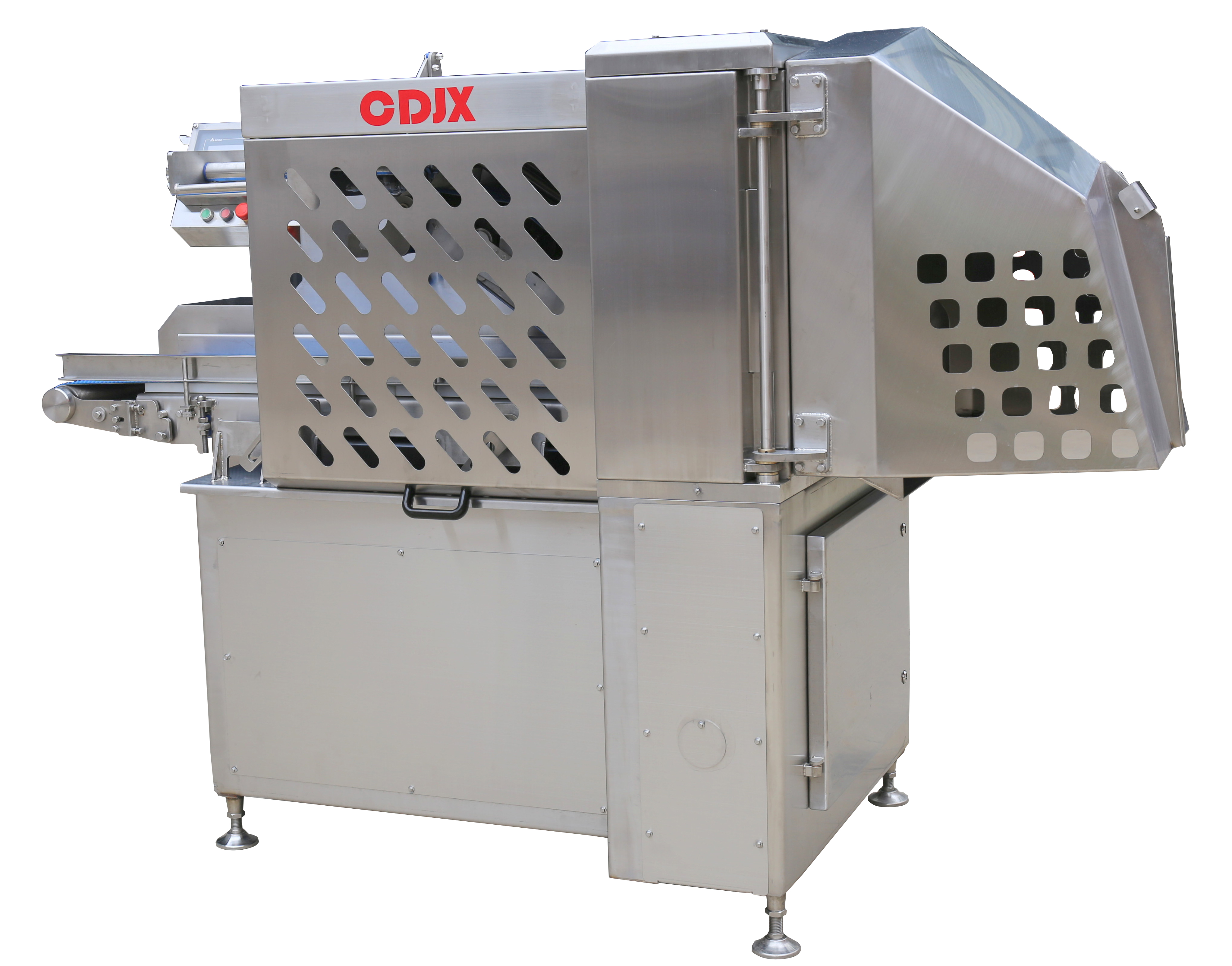

Frozen Meat Divider CDK455/CDL455

The CDK455/CDL455 Frozen Meat Divider is designed to cut large frozen meat blocks into smaller and medium-sized pieces for further processing.

CDK455/CDL455 Frozen Meat Divider in Operation

See the CDK455/CDL455 cutting large frozen meat blocks into smaller pieces for further meat processing.

Frozen Meat Dividing Results

The CDK455/CDL455 cuts large frozen meat blocks into small and medium-sized pieces, preparing the material for subsequent processing such as dicing or mixing.

Technical Data

Voltage: 380V 50Hz

Power: 9kW

Dimension: 1960x990x1680 mm/2450x1100x1660mm |

Input Material Width: 440mm

Input Material Height: 250mm

Cutting Temperature for the Frozen Meat: – 10°C~0 °C

Suitable Cutting Temperature for the Frozen Meat: -6°C~-5°C

Meat Thaw Environment Temperature: -8°C ~ -4°C

Weight: 1100kg/1550kg

Cutting Speed: 15-45 Times/Minute

Cutting Size: 5 – 100mm or According to Customer’s Demands

Control System: PLC, Touch Screen, Frequency Transformer

Distance Between Two Vertical Blades: 145mm

Key Features

Two Feeding Options: The CDK455 uses pushing-plate feeding, while the CDL455 uses upper and lower pressing belts for continuous material feeding.

CDL455 Continuous Belt Feeding: Four sets of separate upper and lower pressing belts transport the material forward. The contact surface between the upper pressing belt and the material remains flat during feeding.

Six-Guide-Pillar Cutting Structure: Uses a six-guide-pillar straight-line cutting structure.

Replaceable Lower Edge: The lower edge can be replaced after wear.

Easy Cleaning: The machine can be flushed directly with a high-pressure water gun.

Safety Protection: Equipped with an inductive automatic shut-off circuit.

Frozen Meat Dividing: Designed to cut large frozen meat blocks into small and medium-sized pieces for further processing.

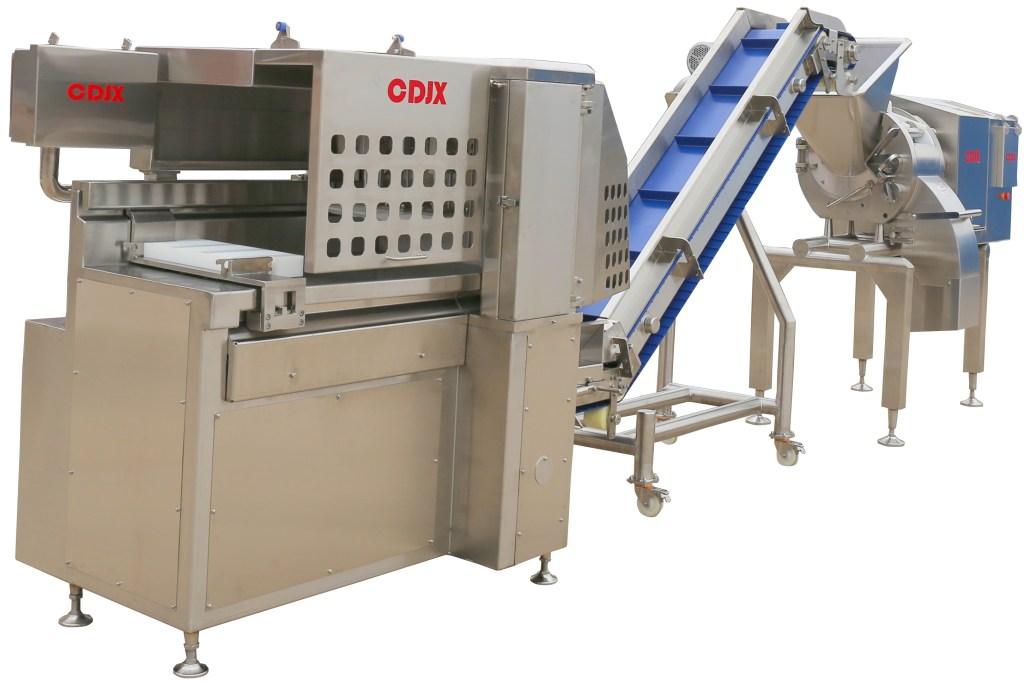

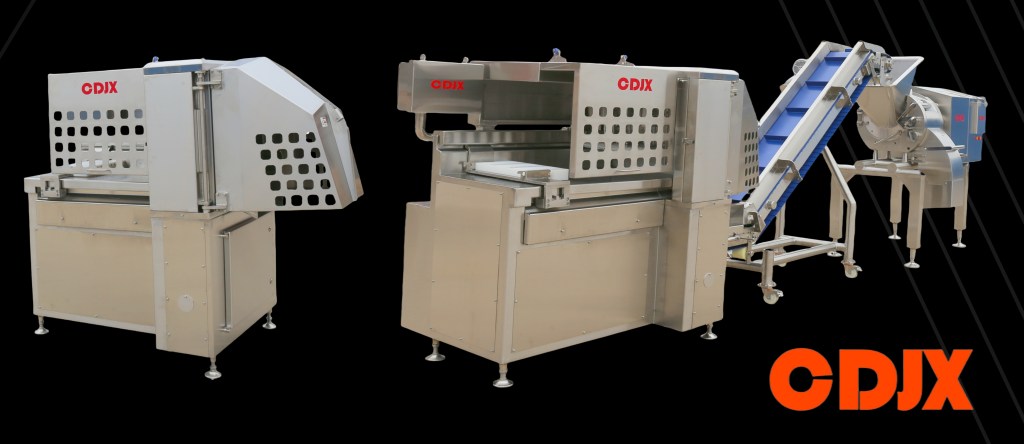

CDK455 or CDL455: Two Feeding Options

The CDK455 and CDL455 use the same type of frozen meat dividing process but provide different material feeding methods.

The CDK455 uses a pushing plate to feed the frozen meat into the cutting area.

The CDL455 uses four sets of upper and lower pressing belts to transport the frozen meat continuously into the cutting area.

The suitable model can be selected according to the customer’s feeding and production requirements.

Designed for Further Meat Processing

The CDK455/CDL455 can be used as a preparation machine before further meat processing. Large frozen meat blocks are first divided into smaller pieces, making them suitable for subsequent processing with equipment such as meat dicers and meat mixers.

Frequently Asked Questions

What is the CDK455/CDL455 used for?

The machine is designed to divide large frozen meat blocks into small and medium-sized pieces for further processing.

What cutting sizes are available?

The cutting size range is 5–100 mm or can be configured according to the customer’s requirements.

Can the CDK455/CDL455 work with other meat processing equipment?

Yes. The divided frozen meat can be further processed with equipment such as meat dicers and meat mixers.

Need to dice the frozen meat after dividing? Explore CDJX Frozen Meat Dicers for further frozen meat processing.

Need a Frozen Meat Dividing Solution?

Contact CDJX with your frozen meat block size, required cutting size and feeding requirements. We can help select between the CDK455 and CDL455, provide cutting tests, pricing and machine recommendations.
