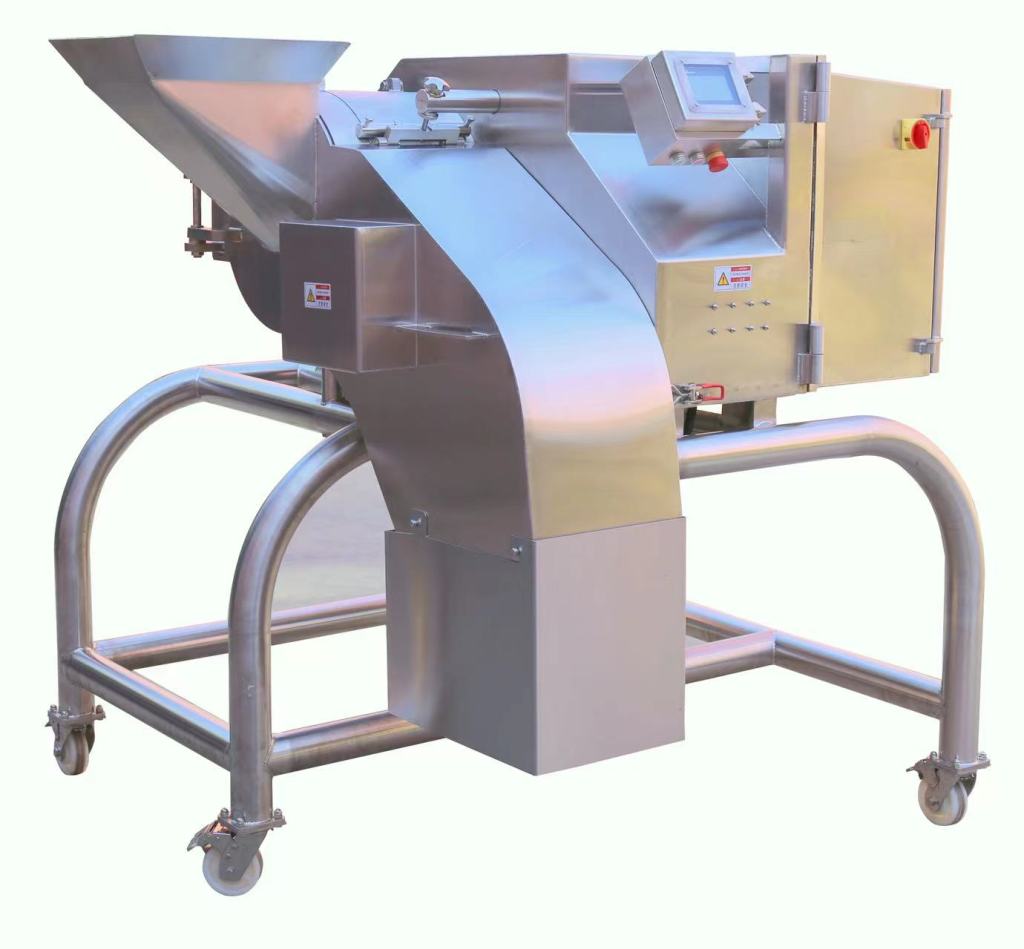

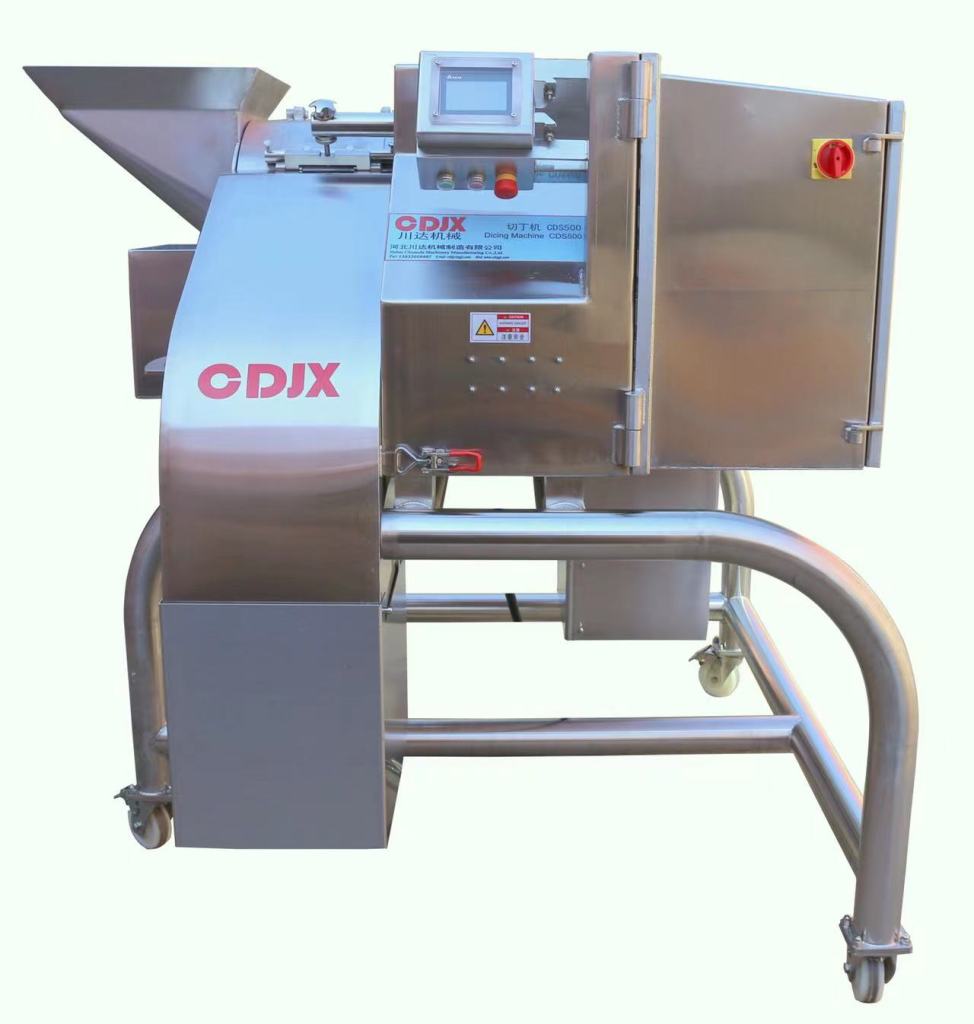

Multi-Function Cutting Machine CDS500

The CDS500 is the largest Multi-Function Cutting Machine in the CDJX range, designed for customers with high-capacity food cutting requirements. It can process cheese, vegetables, frozen fruit and frozen meat into slices, strips and cubes.

CDS500 Multi-Function Cutting Machine in Operation

See the CDS500 continuously processing products for high-capacity slicing, strip cutting and dicing applications.

Multiple Food Cutting Results

The CDS500 can process cheese, vegetables, frozen fruit and frozen meat into slices, strips and cubes in different cutting sizes for a wide range of food processing requirements.

Technical Data

Voltage &Frequency: 380V/50Hz/3Phase or According to Customer’s Demands

Power: 19kW

Inner Drum Diameter: 500mm

Capacity: 1000~5000kg/h

Input Material Size: Diameter less than 200mm

External Dimension: 1650 * 1630 * 1780mm

Weight: 1751kg

Machine Material: SUS304 Stainless Steel

Cutting Temperature: -8°C ~ 0°C

Suitable Cutting Temperature: -5°C

Meat Thaw Environment Temperature: -7°C ~ -3°C

Material Input Way: Continuously

Lubricating Way: Oil Nozzle (170°C High Temperature Resistant lubricating oil)

Control System: PLC, Touch Screen Transformer

Cutting Range: 3-20mm Cubes, Strips, Slices

Output Material Height:400mm

Key Features

Tool-Free Knife Roller Removal: The knife rollers can be disassembled by hand without any tools, making removal and replacement more convenient.

Easy Cleaning: The machine can be flushed directly with a high-pressure water gun after closing the screen protector.

Safety Protection: Opening the discharge port or machine body shell automatically shuts off the machine.

Multiple Food Applications: Suitable for cutting cheese, vegetables, frozen meat and frozen fruit into slices, strips and cubes.

Frequently Asked Questions

What food products can the CDS500 process?

The CDS500 is suitable for cutting cheese, vegetables, frozen meat and frozen fruit into slices, strips and cubes.

What is the processing capacity of the CDS500?

The processing capacity is approximately 1000–5000 kg/h, depending on the raw material and cutting requirements.

What cutting sizes are available?

The cutting size range is 3-20 mm for different food processing requirements.

Need a smaller Multi-Function Cutting Machine? See the CD330 and CD400 for different processing capacities and raw material sizes.

Need a High-Capacity Multi-Function Cutting Solution?

Contact CDJX with your food product, raw material size, required cutting result and production capacity. We can provide cutting tests, pricing and recommend a suitable Multi-Function Cutting Machine for your processing requirements.
