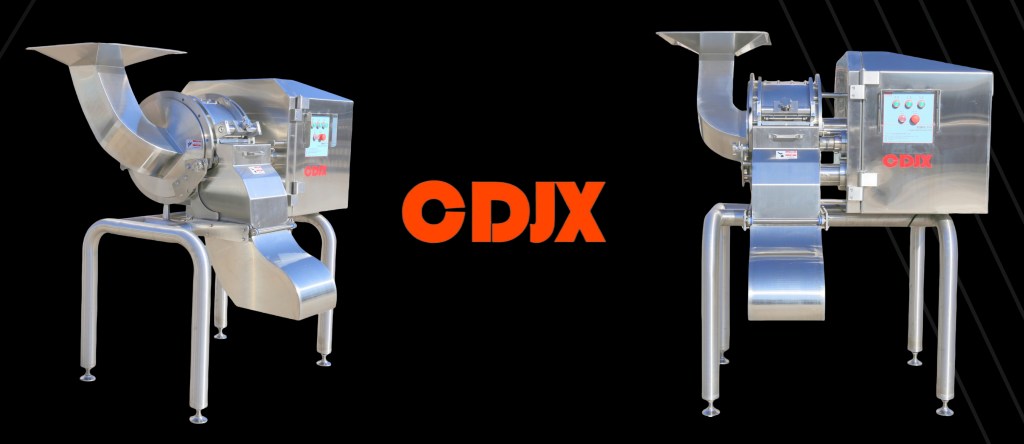

Wavy Grain French Fry Machine CDT500

Wavy Grain French Fry Machine

Technical Data

Voltage &Frequency: 380V/50Hz/3Phase or According To Customer’s Demands

Power: 5.5Kw

Inner Drum Diameter: 500mm

Input Material Size: Diameter Less Than 200mm

Capacity: 1000~5000Kg/H

Cutting Size Range: 3~20mm

External Dimension: 1800x1300x1930mm

Weight: 680Kg

Material Of The Machine: SUS304 Stainless Steel

Material Input Way: Continuously

Lubricating Way: Oil Nozzle

Thickness Control: Manual Adjustment

Introduction

Cleaning Way: High pressure gun flush directly

Safety Equipment: Inductive Automatic Shutoff Circuit

Application:

1. Replaceable Knife Set For Root Vegetables Cutting, Slices, Strips And Cubes

2. The Root Crops Such As Potatoes, Sweet Potatoes And Taro Can Be Cut With Wavy Strips Or Wavy Patterns
