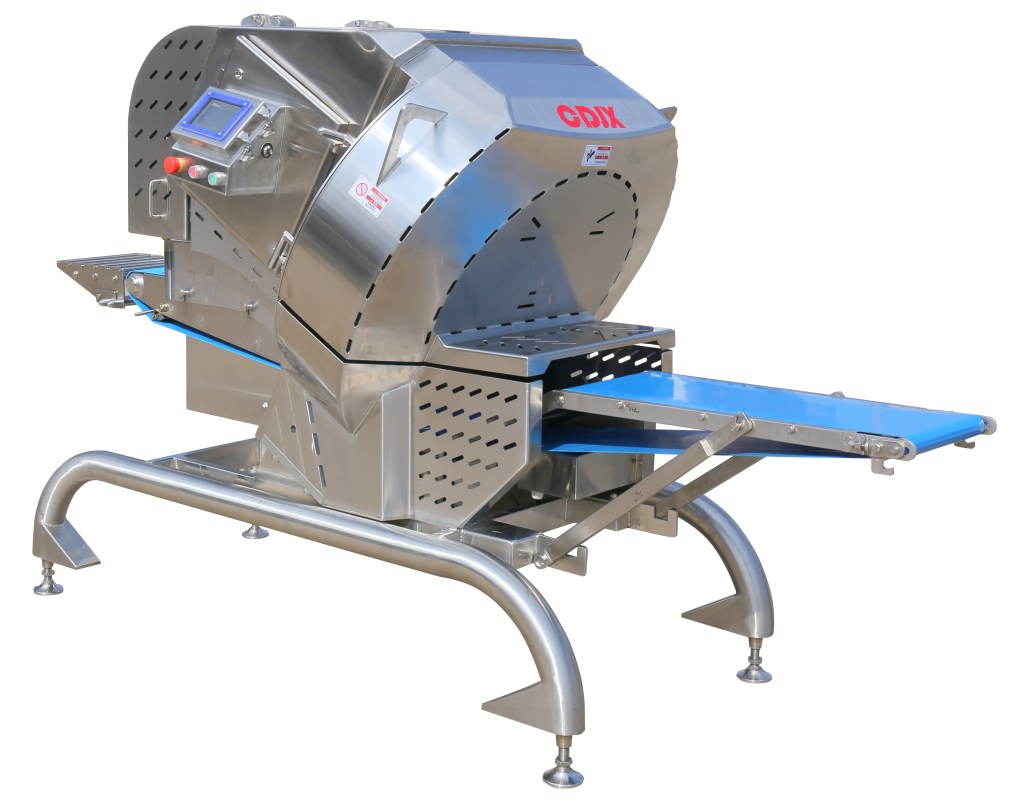

Fresh Meat Slicer CDX315

CDX315

Technical Data

Voltage&Frequency: 380V/50Hz/3Phase or According to Customer’s Demands

Power 5.37KW

Feed Width 315mm Feed Height 100mm

Cutting Speed: 90 times/Minutes X 2 times

External Dimension:2800* 1200* 1700mm

Weight: 1000kg

Suitable Cutting Temperature: -3°C~3°C

Cutting Range: 1-20mm

Material: SUS 304 Stainless Steel

Material Input Way: Continuously

Control System: PLC Touch Screen Inverter Frequency Transformer

Lubrication Method: Oil Nozzle

Introduction

The Feed Belt and Discharge Belt Can Be Disassembled by Hand

The Press Belt Adopts the Horizontal Press Mode, And the Pressure Is Adjustable, No Tail Material

Using The Principle of Double Round Knife Edge Rotating Edge Cutting, To Ensure That the Meat Section Is Smooth and It Splits All the Meat

The Cutting Thickness Is Read on The Screen Through the Servo Feed and Adjustable Slice Thickness Device to Ensure Accurate Cutting Thickness

Application: Suitable For Beef, Lamb, Pork, Chicken and Other Fresh Meat Slices
