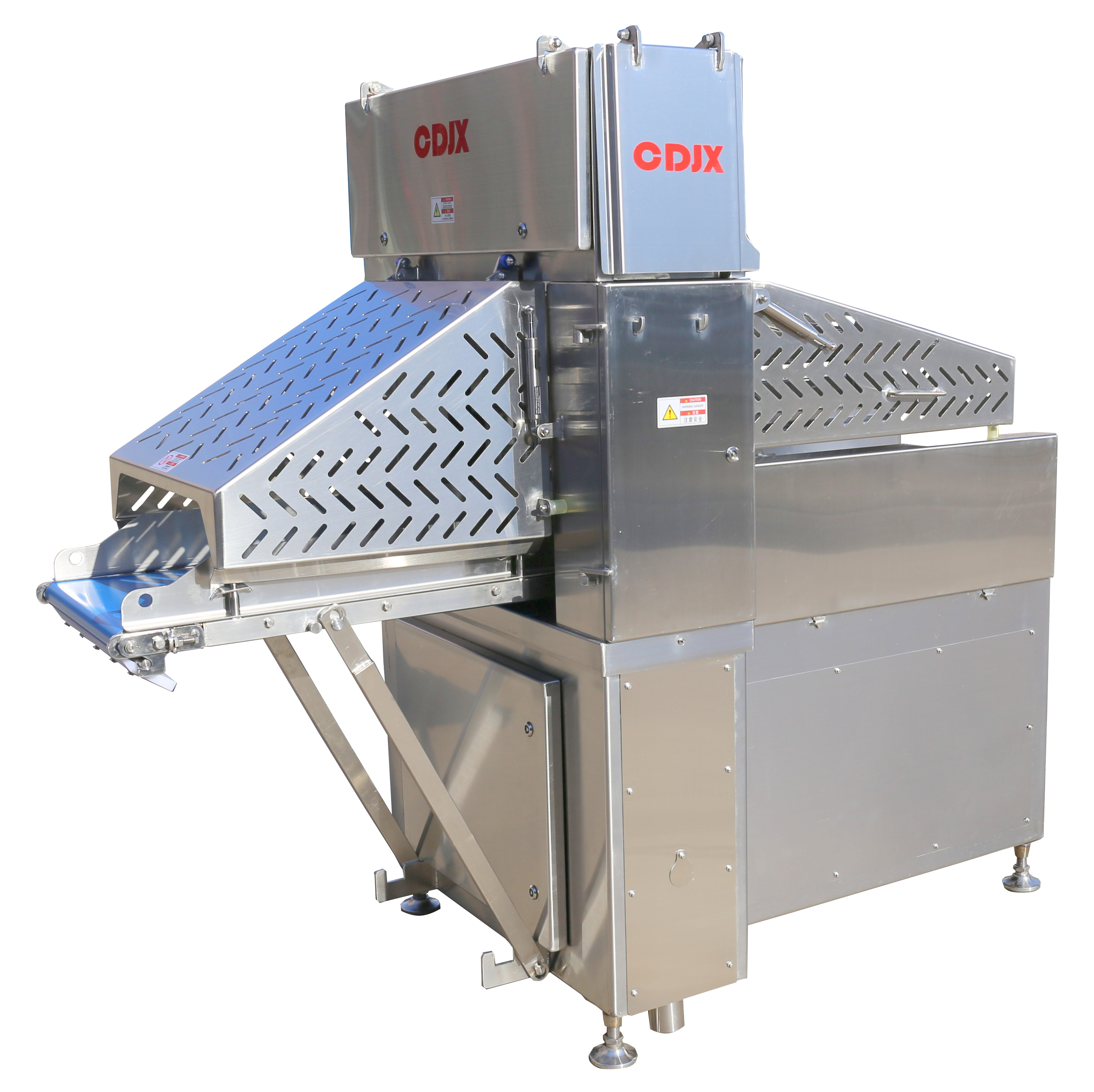

Frozen Meat Slicer CD455

CD455

Technical Data

Voltage: 380V/50Hz/3Phase or According to Customer’s Demands

Power: 9.12kW

Knife Cutting Speed: 27 ~90Times/Minute

Knife Cutting Thickness: 0.3~700mm

Input Material Size: 430*700mm

Cutting Height: 190mm/250mm

External Dimension : 2100x1100x1800mm

Weight: 988kg

Machine Material: SUS304 Stainless Steel

Cutting Temperature for the Frozen Meat: -10°C ~ 0 °C

Suitable Cutting Temperature for the Frozen Meat: -6°C~-5 °C

Meat Thaw Environment Temperature: -8°C ~ -4°C

Material Input Way: Put the Material Continuously

Lubricating Way: Oil Nozzle

Control System: PLC, Touch Screen, Frequency Transformer

Introduction

Advanced Structure Design:

Six Guide Pillar Straight-line Positioning Cutting Structure

Pushing Plate Could be Disassembled and Cleaned by Hands

The lower Edge is Worn and Replaceable

Cleaning Way: High Pressure Gun Flush Directly

Safety Equipment: Inductive Automatic Shutoff Circuit

Application: Frozen Meat Slice, Strips, Blocks and Rolls.
