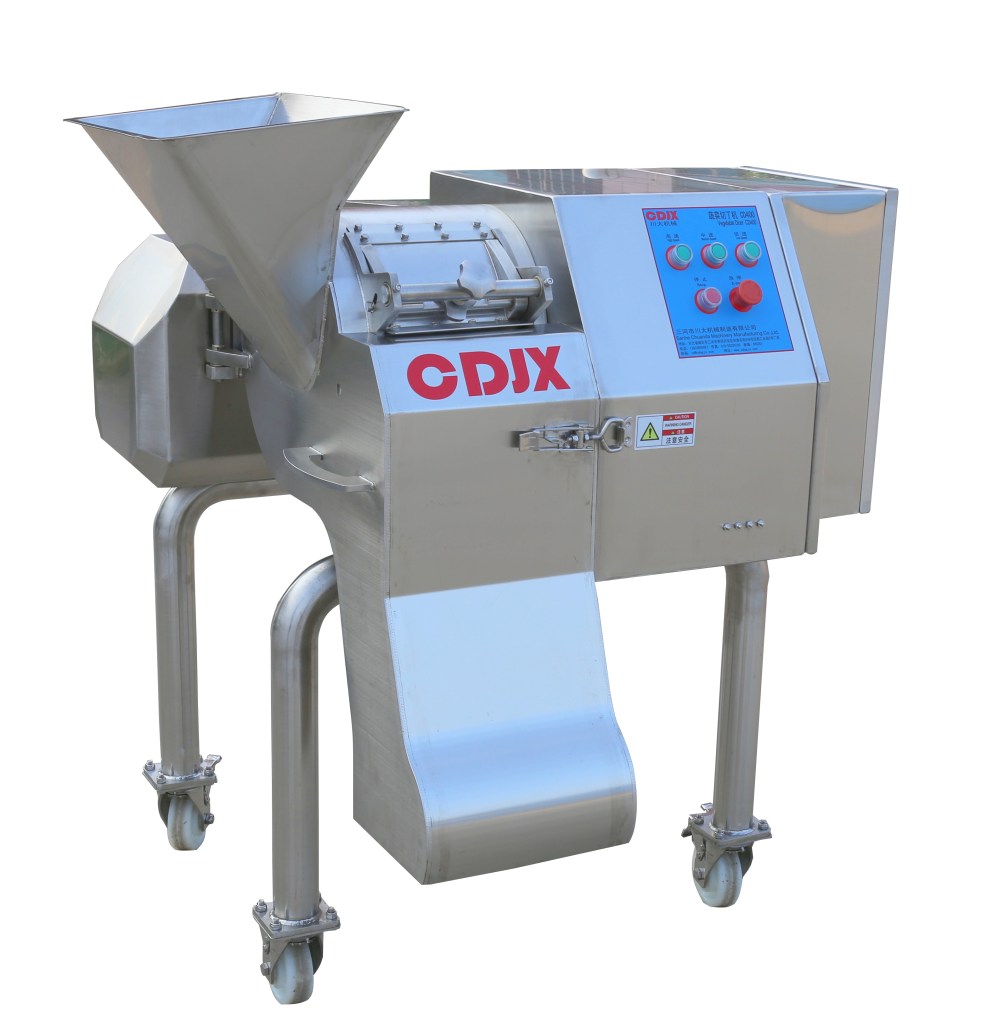

Multi-Function Cutting Machine CD400

CD400

Technical Data

Voltage &Frequency: 380V/50Hz/3Phase or According to Customer’s Demands

Power: 7.5kW

Inner Drum Diameter: 400mm

Capacity: 2000~4000kg/h

Input Material Size: Diameter less than 200mm

Cutting Size Range: 3~12mm Slices, Strips and Cubes

External Dimension: 1440*1250*1600mm

Weight: 600kg

Material of the Machine: SUS304 Stainless Steel

Cutting Temperature for the Frozen Meat: -5°C~0°C

Meat Thaw Environment Temperature: -6°C ~ – 3°C

Material Input Way: Continuously

Lubricating Way: Oil Nozzle

Thickness Control: Manual Adjustment

Control System: Waterproof Buton, Frequency Transformer

Introduction

Use Imported Knife Blades: The Knife Pieces is Thin and Sharp, Cutting Surface is Smooth

Cleaning Way: High Pressure Gun Flush Directly

Safety Equipment: Inductive Automatic Shutoff Circuit

Application: Cheese, Vegetables, Frozen Meat and Frozen Fruit Cutting,Slices, Strips and Cubes
