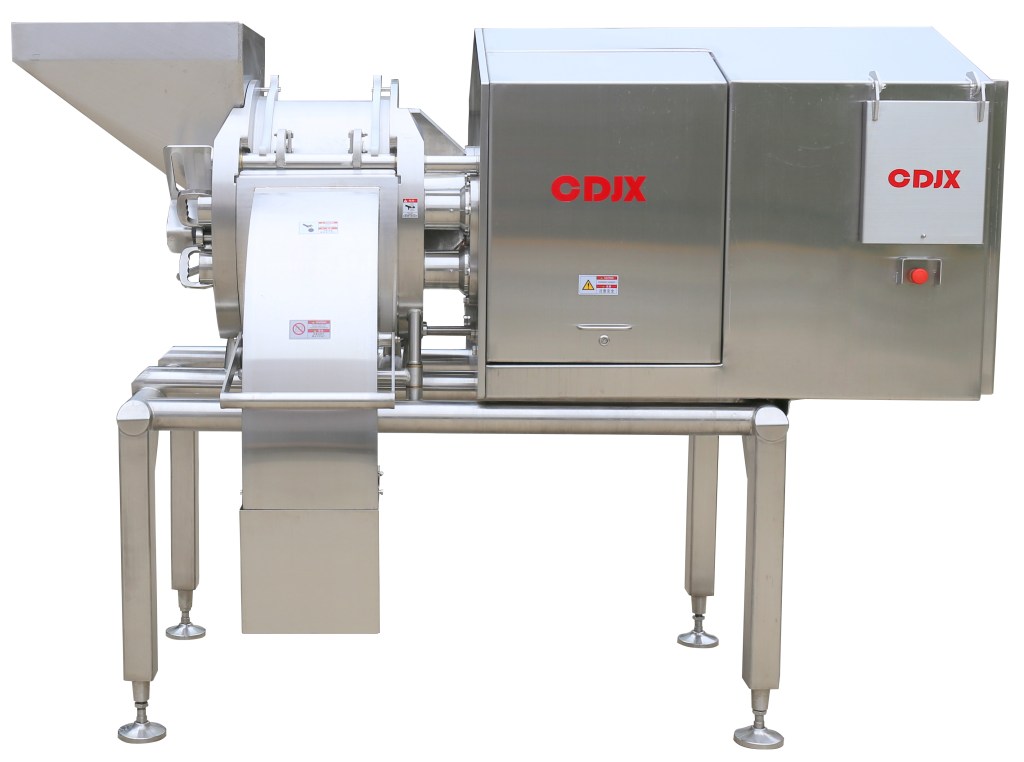

Frozen Meat Dicer CD500/CD550

CD500/CD550

Technical Data

Voltage&Frequency: 380V/50Hz/3Phase or According to Customer’s Demands

Power: 14.5kW/22kW

Inner Drum Diameter: 500mm/550mm

Capacity: 900~ 1500kg/h/1000~3000kg/h

Input Material Size: Diameter Less Than 130mm/Diameter Less Than 280mm

Cutting Size Range: 4~20mm Frozen Meat Slices, Strips and Cubes

External Dimension: 1630*1260*1840mm/2600*1500*1900mm

Weight: 1500kg/1700kg

Material of the Machine: SUS304 Stainless Steel

Cutting Temperature for the Frozen Meat: -10°C ~ 0 °C

Suitable Cutting Temperature for the Frozen Meat: -6°C~-5°C

Meat Thaw Environment Temperature: -8°C ~ -4°C

Material Input Way: Continuously

Lubricating Way: Oil Nozzle

Thickness Control: Touch Screen Automatic

Control System: PLC, Touch Screen, Frequency Transformer

Introduction

Advanced Knife Rollers Disassembly Way:

Workers Could Disassemble the Knife Rollers by Hands, no Need any Tools

Cleaning Way: High Pressure Gun Flush Directly

Safety Equipment: Inductive Automatic Shutoff Circuit

Application: Frozen Meat Slice, Strips and Cubes
