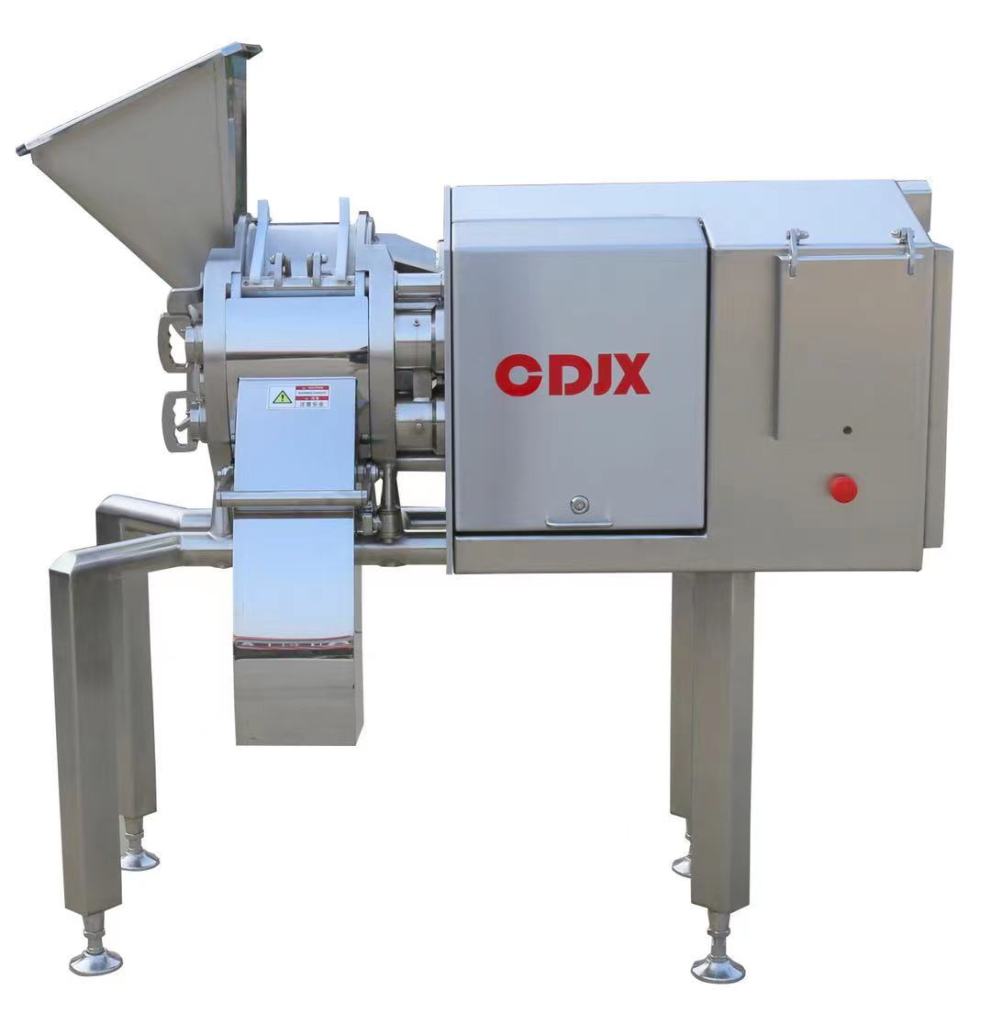

Frozen Meat Dicer CD300
CD300
Technical Data
Control System: PLC, Touch Screen, Frequency Transformer
Voltage&Frequency: 380V/50Hz/3Phase or According to Customer’s Demands
Power: 7kW
Inner Drum Diameter: 300mm
Capacity: 500~ 1000kg/h
Input Material Size: Diameter Less Than 100mm
Cutting Size Range: 4~12mm Frozen Meat Slices, Strips and Cubes
External Dimension: 1410*760*1208mm
Weight: 464kg
Material of the Machine: SUS304 Stainless Steel
Cutting Temperature for the Frozen Meat: – 10°C ~ 0 °C
Suitable Cutting Temperature for the Frozen Meat: -6°C~ -5°C
Meat Thaw Environment Temperature: -8°C ~ -4°C|
Material Input Way: Continuously
Lubricating Way: Oil Nozzle
Thickness Control: Manual Adjustment
Introduction
Advanced Knife Rolers Disassembly Way:
Workers Could Disassemble the Knife Rolers by Hands,no Need any Tools
Cleaning Way: High Pressure Gun Flush Directly
Safety Equipment: Inductive Automatic Shutoff Circuit
Application: Frozen Meat Slice, Strips and Cubes
